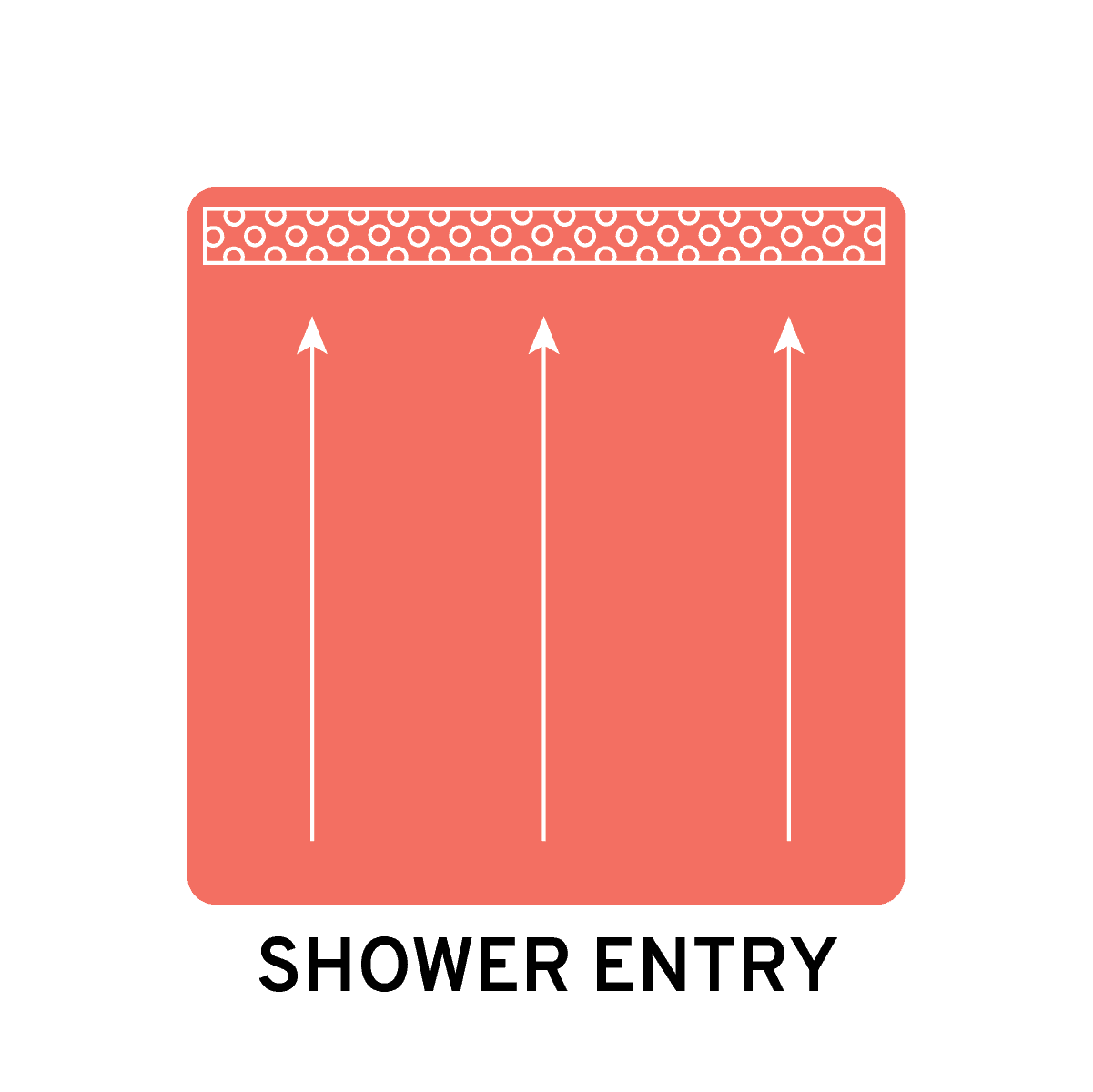

Rapid Recess Bracket Kit for Linear Drain at the Back Wall

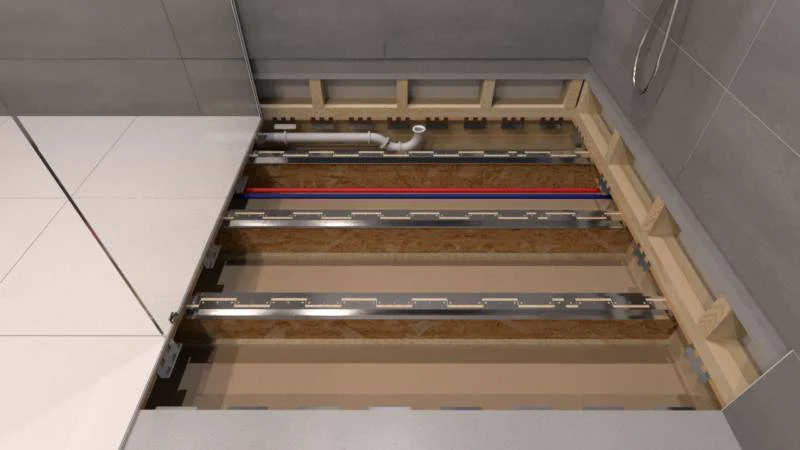

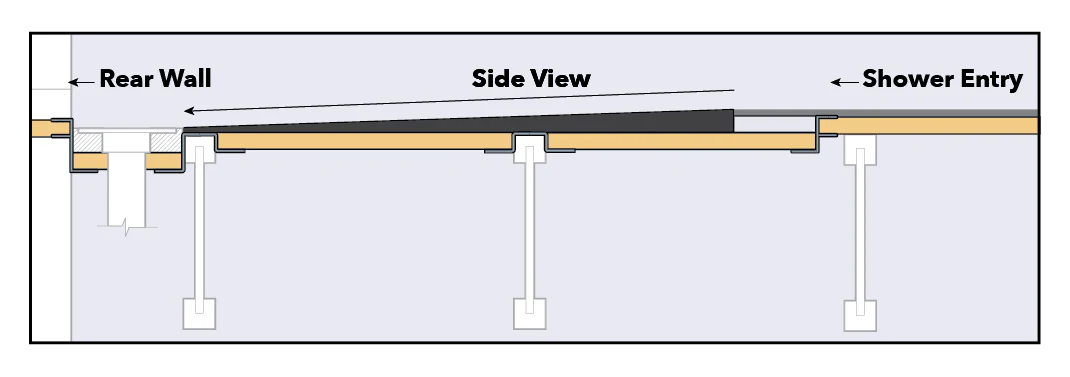

The Rapid Recess bracket system kits provide a solution to lowering the subfloor in preparation for a curbless tile shower without compromising the structural integrity of wood floor joists. Rapid Recess brackets were designed to work with most major tile shower systems currently on the market. Rapid Recess Kits are only suitable for showers that are 25 square feet or less.
This Kit Includes:
- M bracket - 47 3/8" long main bracket fastened to the top of floor joists (x8)
- Z bracket - 5" long side bracket used for wall to recess and main floor to recess transitions (x22)
- ML bracket - 47 3/8" long main bracket fastened to the top of last floor joist (x2)
- ZL bracket - 5" long side bracket used for wall to recess (x8)
- #10 2 3/4" wood to metal self-drilling screws with wings (x40)
- #10 1 5/8" wood to metal self-drilling screws with wings (2 packages of 80 pieces)
- #8 x 1 1/4" Flat-head Phillips screws (x60)
Rapid Recess Technical Support
[email protected]
970-852-0150
Downloads:
Rapid Recess Linear Drain Installation Instructions for Joists Perpendicular to Shower Entry
Rapid Recess Linear Drain Installation Instructions for Joists Parallel to Shower Entry
